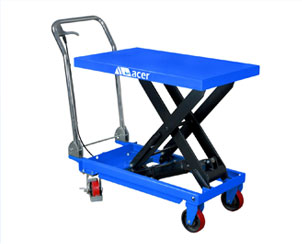

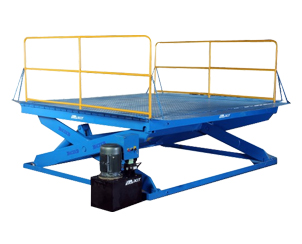

Lift Table
Acer Engineer Pvt. Ltd. offers a wide range of Lift Tables in advanced features to cater to vast requirements of clients. The AHLT Lift Table provided by us is safe & efficient and ways to endless Material Handling Applications at Distribution Center, Logistics Companies, Industries etc. Our Lift Tables are popular in the market because we don’t compromise on the quality and always endeavor to meet International Standards by stringent quality checking and using State-of-the-art Technologies in the manufacturing process.

  FEATURES
Remote power pack with 4 mtr Hydraulic Hose.
Push button control on 3.5 mtr cable.
Hydraulic pump with built in overload relief.
Full length deck beam for maximum support.
Solid plate scissor legs for maximum rigidity.
Chequered Plate deck and 300mm long lip with chain
All pivot points equipped with lubricated nipples
Lowering brake valve to prevent platform free fall
Completely sealed, weather resistant glinders and piston
Motor, controls, push button factory pre wired and tested

CAP DECK
WIDTH
mm
DECK
LENGHT
mm
LOWERED
HEIGHT
mm
VERTICAL
TRAVEL
mm
HEIGHT
LIFTED
mm
2000 1600 2400 270 1500 1770
2700 360 1600 1960
3000kg 1900 2400 270 1500 1770
2700 360 1600 2030
5000kg 2150 2400 360 1500 2030
2700 450 1600 2120
7000kg 2400 2400 540 1500 2210
2700 540 1600 2210
Power Pack
Electro hydraulic power pack with overload relief valve for safety.
Motor - 3 phase, 415 V .
Control panel having key switch and optional control voltage of 110 V/24 V for operating safely.

Cylinder
Hard chrome plated piston rod and cylinder inner for weather resistance with completely sealed for long life.
