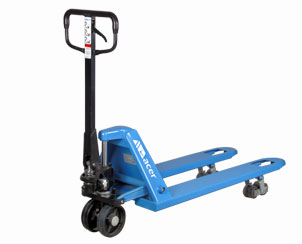

Hydraulic Hand Pallet Truck
Most reliable Material Handling vehicles manufacturer and supplier provides you a variety of hydraulic hand pallet trucks, which is designed and developed by highly talented and qualified engineers and personnel. These Hydraulic Hand Pallet Trucks are passed through stringent quality checking norms before delivery, which help us in offering products of International Standard to the customers. We supply the product range in advanced features to assist users in all types of loading and material handling needs. These are made of superior quality material and checked by experts and ensure One Hundred Percent satisfaction in terms of durability and appreciable results during operation.

  FEATURES
Special lowering valve and auto neutral for controlled handling of load
Fork tip roller system for smooth transition in and out of pallets
Solid steel formed forks and chassis with reinforced frame
Articulating steer axle to compensate on uneven floors
High quality pump and hard chrome plated piston
Rounded fork ends reduce damage to pallets
All pivot points comes with sealed bearings
Powder coated paint finish 2500 kg capacity
The APT - 25- Hand Pallet Truck easily handles Heavy-Duty applications, maximizes productivity and decreases operator’s fatigue.

Advantages
60,000 pump cycle test without oil seal leaks
Industry best warranty - One Year
11 quick pump to the fully raised position pistons in the pump lift cylinder are hard chromed
Double sealed high pressure Polyurethane packing set are used to prevent oil leakage
Pump assembly includes auto neutral for controlled handling of loads
The handling also acts as a pumping bar and enables precise steering
Lifting capacity: 11mm per stroke
Weight: 70 kg


Lifting Capacity: 11mm per Stroke Weight: 70kgs
Standard Frames
Dim A Dim B Dim C Dim L
1150 510 210 1510
1220 685 385 1580
Optional Frame
  Dim A Dim B
Minimum 400 300
Maximum 2500 1500
WHEELS
Support: Nylon (2) _180mm*40mm
Bogie: Nylon (2) or (4) _72mm*80mm
Optional: Cast iron, PU Load wheels and steering wheels.

APT - 25 WS
With Electronic Scale Weighing
APT - 25SS
Stainless Steel Version
APT - 2SPRV
Paper Roll Version


APT - 25LP
Low Profile Version
