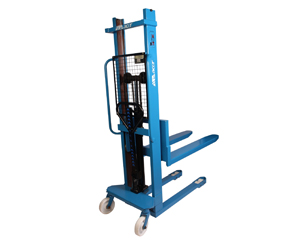

Hand Stacker
We, the Material Handling Equipments solutions provider offer unique range of Hand Stackers at competitive price range. Our Hand Stackers provides a safe and efficient way to endless material application at Distribution Center, Logistics Companies, Industries etc.
  FEATURES
Basic capacity from 500 kg – 1500 kg
Lift heights: Mono and telescopic masts from 1400  mm – 3000 mm
Special Fork Length & Width.
Robust construction
Pump assembly  includes neutral position for controlled handling of load
Pistons and cylinder are hard chrome Plated.
Double sealed high pressured polyurethane seals are used to prevent leakage
Industry’s Best Warranty - 1 year
Lifting speed – 14 mm/stroke
Our Stackers are suitable, where lifting is primary and the transport distance is short

Maximum Fork
height(mm) h3
Overall height
(mm) h1
Extended mast height(mm) h4 Capacity at
600mml.c(kg)z
1600 2000 2000 1000
2450 1780 2920 1000
2850 1980 3320 850
3100 2100 3570 770
3350 2230 3820 700
3600 2350 4070 600
3900 2500 4370 480
4200 2650 4670 360

Configuration
