All the Electric Stackers manufactured and supplied by us are made of best quality material. All the Electric Stackers supplied by Our Company are adequate to meet each requirement of users. We bring you advanced ergonomics, engineering, materials and the highest quality electrical, hydraulic and mechanical components in ACER-AES series Stackers. Other features like programmable electric hand control makes these products safer, and maintenance free.
A Hybrid Electric Stacker from Acer that indeed an Eye Opener.

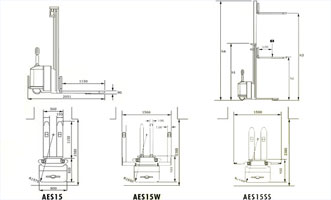

AES - 15W
With Wider Version
Capacity - 1500Kgs
Lift Height Upto - 6000mm
AES -15SS
With Side Stablizer
Capacity - 1500Kgs
Lift Height Upto - 6000mm
FEATURES
Reduced material movement and storage cost
Clear view mast gives a greater visibility
Good maneuverability in small space
For use in narrow aisles
Robust construction
Tandem load wheels
Good stability
Battery
The Battery Capacity - 24 V
180 / 206Ah/5hrs Rating - For Mono & Telescopic Stackers
240 / 330Ah/5hrs Rating - For WFFTL & SSFFTL Stackers
The battery weight 280 kgs
The battery is rested on nylon rollers for quick and effective replacement
Electric Unit
Drive Motor : 1.6 KwMake CFR ,ITALY
Lift Motor : 2.2 Kw Make HALDEX, SWEDEN
Controller Type :MOSFET based DC Motor Speed Controller CURTIS INSTRUMENT-ENGLAND
Charger : SIRIUS Controls
Mast Channel
Make - HOESCH , Germany
Direction Control Valve
Make - HYDRO CONTROL, Italy
Cables and Wiring
Make - FINOLEX, INDIA
Suspension
Heavy-duty suspension with 4 helical coil springs ensures the firm grip
to the drive wheels for positive traction.
